DABL-40 6kA 10kA Electronic Residual Current Device RCBO Circuit Breaker

Introduction
The DABL-40 6kA 10kA electronic residual current circuit breaker is designed by Dada engineers for stable operation, precise protection, short opening time, and a high breaking capacity index, all in one small device. The circuit breakers are also produced according to GB 10963 and IEC60898 standards.

The circuit breakers are commonly installed for the overload protection of contactors, relays, and other electrical equipment.

Main functions: short circuit protection, overload protection and isolation.

Model
DABL-40 1P+N/2P RCBO Circuit Breaker
DABL-40 1P+N/2P RCBO Circuit Breaker
Rated current Rated frequency Rated operating voltage Rated residual current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity W*H*L
6-63A 50-60Hz 230/400V 10,30,100,300A 500V 6KV B/C/D DABL-40 10KA, DABL-63 6KA 36/54mm*80.4mm*72mm
Inquiry Form

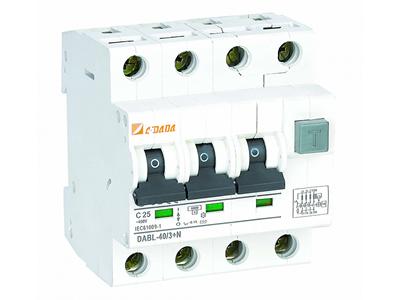

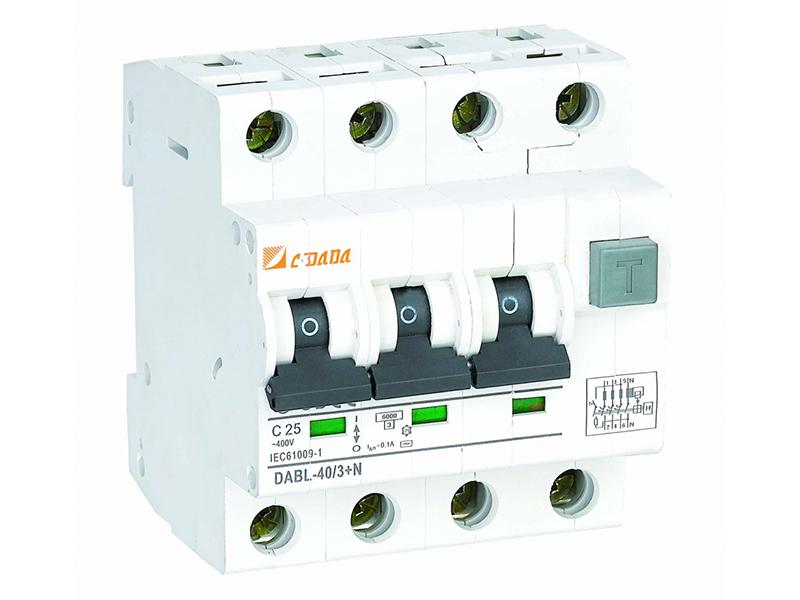

DABL-40 3P+N/4P RCBO Circuit Breaker
DABL-40 3P+N/4P RCBO Circuit Breaker
Rated current Rated frequency Rated operating voltage Rated residual current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity W*H*L
6-63A 50-60Hz 230/400V 10,30,100,300A 500V 6KV B/C/D DABL-40 10KA, DABL-63 6KA 72/90mm*80.4mm*72mm
Inquiry Form
DABL-63 2P RCBO Circuit Breaker
DABL-63 2P RCBO Circuit Breaker
Rated current Rated frequency Rated operating voltage Rated residual current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity W*H*L
6-63A 50-60Hz 230/400V 10,30,100,300A 500V 6KV B/C/D DABL-40 10KA, DABL-63 6KA 54mm*95mm*72mm
Inquiry Form

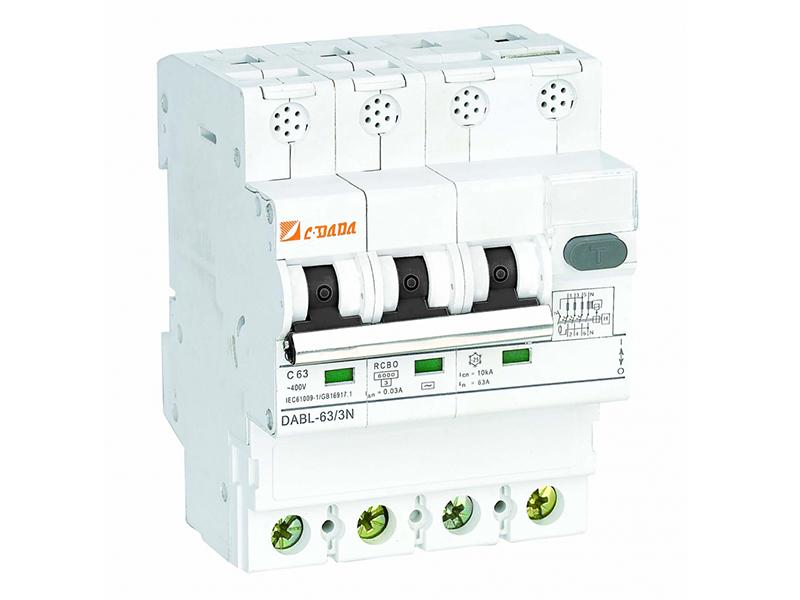

DABL-63 3P+N/4P RCBO Circuit Breaker
DABL-63 3P+N/4P RCBO Circuit Breaker
Rated current Rated frequency Rated operating voltage Rated residual current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity W*H*L
6-63A 50-60Hz 230/400V 10,30,100,300A 500V 6KV B/C/D DABL-40 10KA, DABL-63 6KA 72/90mm*95mm*72mm
Inquiry Form

Technical parameter of DABL-40 electronic residual current circuit breaker
Protection grade: IP20
Flame retardant grade: grade2
Endurance (mechanical): 12,000
Endurance (electrical): 6,000
Electric wire: 1~25mm2
Operating temperature: -5~+40℃
Altitude: ≤2000
Relative humidity: +20℃, ≤90%; +40℃, ≤50%
Class of pollution: 2
Installation environment: Avoid obvious shock and vibration
Installation grade: grade II, grade III

Installable accessories of DABL-40 electronic residual current circuit breaker
Auxiliary contact, alarm contact, shunt trip, undervoltage trip, overvoltage trip

DADA company manufactures miniature electrical switches such MCB Circuit breakers, RCD circuit breakers, ELCB breakers, RCBO, RCB circuit breakers, molded case circuit breaker, DADA started miniature circuit breaker manufacturing from 2004, already offered million various electrical circuit breakers into global markets for different electrical MCB breaker clients.
