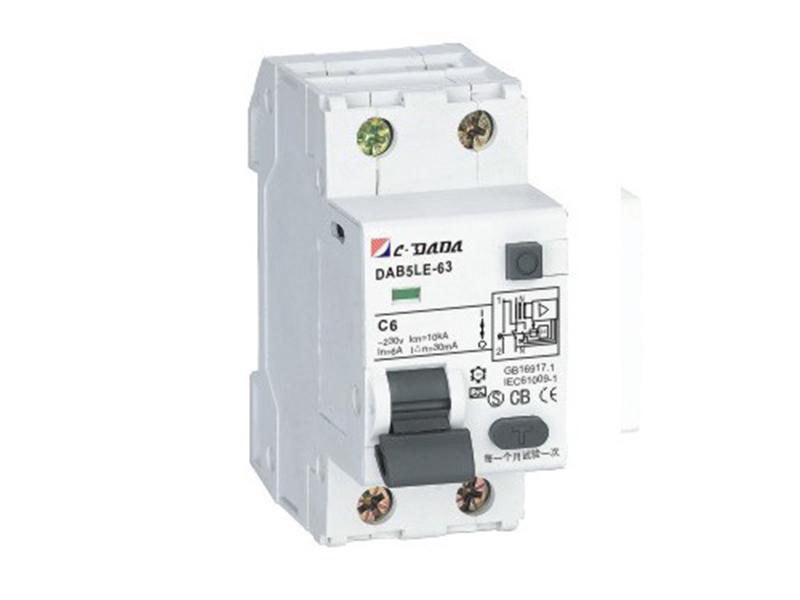

DAB5LE-63 4.5kA Residual Current Device RCBO Circuit Breaker

DAB5LE-63 4.5kA Residual Current Device RCBO Circuit Breaker

Functions
The outstanding functions of the DAB5LE-63 4.5KA RCBO miniature residual current circuit breakers include short circuit protection, overload protection and isolation.

Model

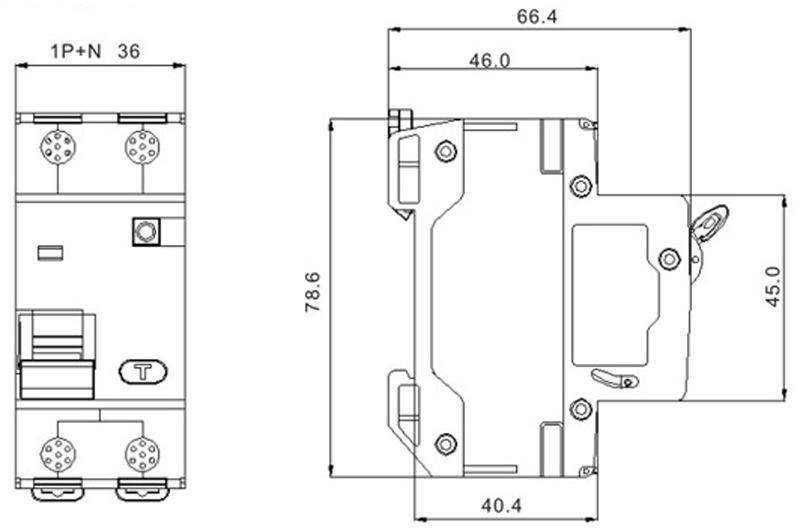

DAB5LE-63 1P+N RCBO Circuit Breaker
Rated current Rated residual operating current Rated operating voltage Rated frequency Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
2,4,6,10,16, 20,25,32,40, 50,63 10,30,100A 230/400V 50-60HZ 500V 4KV B/C/D 6(50-63A 4.5A) Thermo-magnetic 17.5mm*80.2mm*72mm
Inquiry Form
DAB5LE-63 2P+N RCBO Circuit Breaker
Rated current Rated residual operating current Rated operating voltage Rated frequency Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
2,4,6,10,16, 20,25,32,40, 50,63 10,30,100A 230/400V 50-60HZ 500V 4KV B/C/D 6(50-63A 4.5A) Thermo-magnetic 35.5mm*80.2mm*72mm
Inquiry Form
DAB5LE-63 3P+N RCBO Circuit Breaker
Rated current Rated residual operating current Rated operating voltage Rated frequency Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
2,4,6,10,16, 20,25,32,40, 50,63 10,30,100A 230/400V 50-60HZ 500V 4KV B/C/D 6(50-63A 4.5A) Thermo-magnetic 52.5mm*80.2mm*72mm
Inquiry Form
DAB5LE-63 4P+N RCBO Circuit Breaker
Rated current Rated residual operating current Rated operating voltage Rated frequency Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
2,4,6,10,16, 20,25,32,40, 50,63 10,30,100A 230/400V 50-60HZ 500V 4KV B/C/D 6(50-63A 4.5A) Thermo-magnetic 70mm*80.2mm*72mm
Inquiry Form
DAB5LE-63 4.5kA Residual Current Device RCBO Circuit Breaker

Technical parameter of DAB5LE-63 residual current device circuit breaker
Standard of conformity: IEC61009, GB16917
Protection grade: IP20
Flame retardant grade: grade2
Electric wire: 1~35mm2
Endurance (electrical): no less than 8,000 times of on-off
Endurance (mechanical): no less than 20,000 times of on-off
Operating temperature: -5~+40℃
Altitude: ≤2000
Relative humidity: +20℃,≤90%; +40℃,≤50%
Class of pollution: 2
Terminal type: Dual-purpose terminal can be connect both to the bus bar and soft and hard conductor.
Conductor specifications: 1-25 mm2, bus bar thickness: 0.8-2mm
Installation method: Using 35mm IEC standard
Installation environment: Avoid obvious shock and vibration
Installation grade: grade II, grade III

Installable accessories of DAB5LE-63 residual current device circuit breaker
Auxiliary contact, alarm contact, shunt trip, undervoltage trip, auxiliary contact alarm

DADA company manufactures miniature electrical switches such MCB Circuit breakers, RCD circuit breakers, ELCB breakers, RCBO, RCB circuit breakers, molded case circuit breaker, DADA started miniature circuit breaker manufacturing from 2004, already offered million various electrical circuit breakers into global markets for different electrical MCB breaker clients.
