DAB6LE-63 4-5kA Residual Current Device ELCB Earth Leakage Circuit Breaker

Performance of DAB6LE-63 4-5KA miniature residual current circuit breaker
1. Compact structure, small size, 2 modules wide.
2. It has neutral line breaking function, more secure and reliable.
3. It has dual-purpose terminal with strong connection ability.
4. It has the contact status indicator, easy to identify the contact condition.
5. Can be used with a variety of accessories, and used for overvoltage protection.

Model

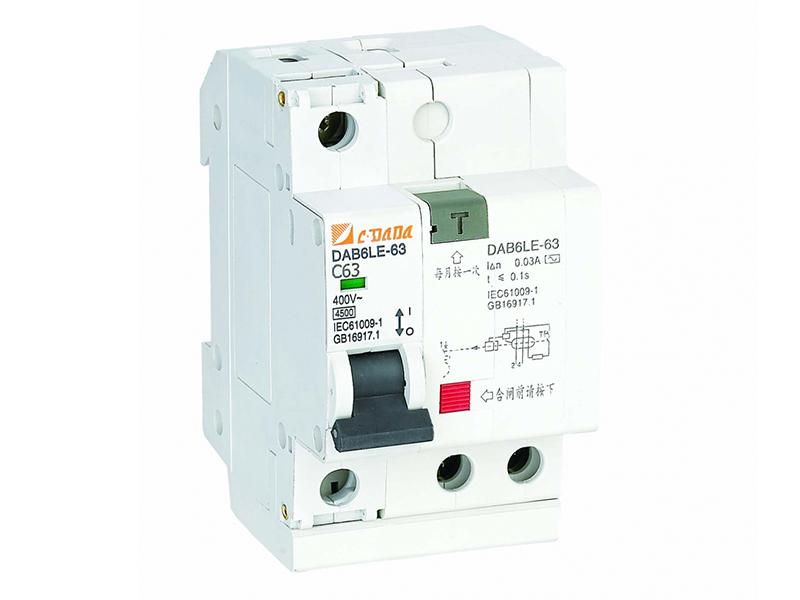

DAB6LE-63 1P+N ELCB Circuit Breaker
DAB6LE-63 1P+N ELCB Circuit Breaker
Number of poles Rated current Residual current type Rated frequency Rated residual operating current Rated residual non-operating current Rated operating voltage Insulation voltage Rated impulse withstand voltage Instantaneous trip type Rated breaking capacity
1P+N 32A(ostiole) 2-32A 63A(ostiole) 40-63A AC and A 50-60HZ 30,100,300A 5,15,25,300A 230V 400V 4KV B/C/D 5KA(2-40A),4KA(50-63A)
Inquiry Form

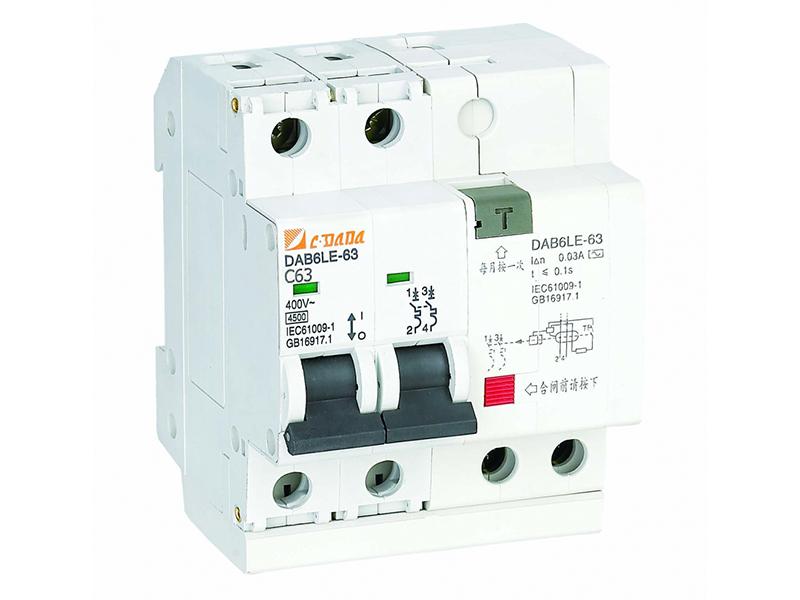

DAB6LE-63 2P ELCB Circuit Breaker
DAB6LE-63 2P ELCB Circuit Breaker
Number of poles Rated current Residual current type Rated frequency Rated residual operating current Rated residual non-operating current Rated operating voltage Insulation voltage Rated impulse withstand voltage Instantaneous trip type Rated breaking capacity
2P 32A(ostiole) 2-32A 63A(ostiole) 40-63A AC and A 50-60HZ 30,100,300A 5,15,25,300A 230V 400V 4KV B/C/D 5KA(2-40A),4KA(50-63A)
Inquiry Form

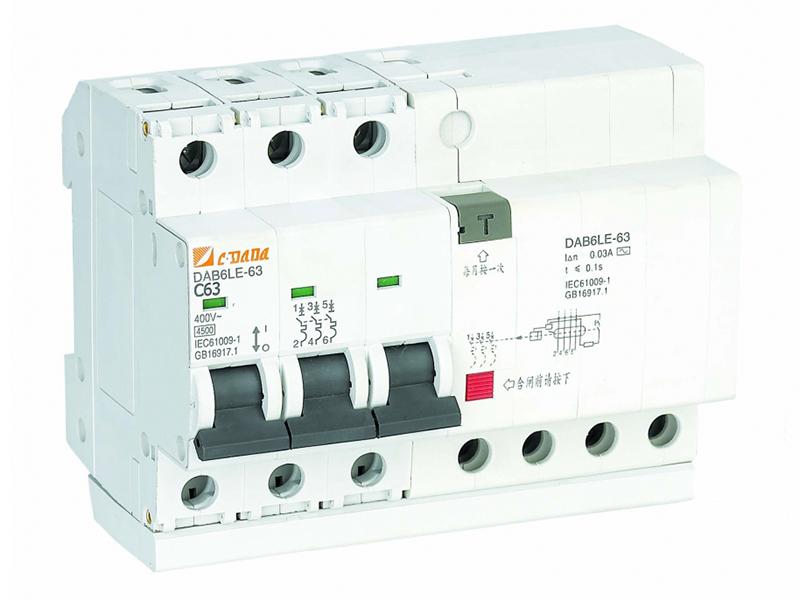

DAB6LE-63 3P+N ELCB Circuit Breaker
DAB6LE-63 3P+N ELCB Circuit Breaker
Number of poles Rated current Residual current type Rated frequency Rated residual operating current Rated residual non-operating current Rated operating voltage Insulation voltage Rated impulse withstand voltage Instantaneous trip type Rated breaking capacity
3P+N 32A(ostiole) 2-32A 63A(ostiole) 40-63A AC and A 50-60HZ 30,100,300A 5,15,25,300A 400V 400V 4KV B/C/D 5KA(2-40A),4KA(50-63A)
Inquiry Form

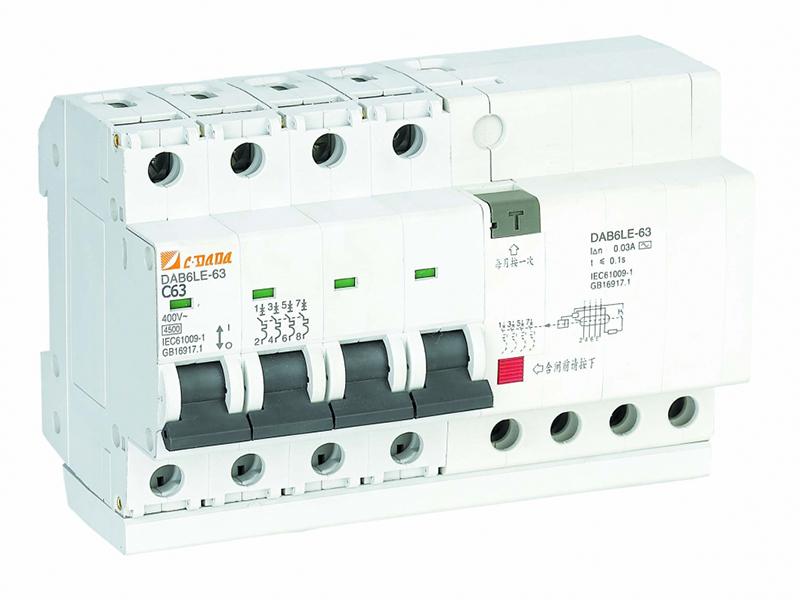

DAB6LE-63 4P ELCB Circuit Breaker
DAB6LE-63 4P ELCB Circuit Breaker
Number of poles Rated current Residual current type Rated frequency Rated residual operating current Rated residual non-operating current Rated operating voltage Insulation voltage Rated impulse withstand voltage Instantaneous trip type Rated breaking capacity
4N 32A(ostiole) 2-32A 63A(ostiole) 40-63A AC and A 50-60HZ 30,100,300A 5,15,25,300A 400V 400V 4KV B/C/D 5KA(2-40A),4KA(50-63A)
Inquiry Form

Physical parameters of DAB6LE-63residual current device
Standard of conformity: IEC61009 (EN61009) and GB16917.1
Sensitivity: type A, type AC
Release type: electronic type
Release time: minimum 10ms delay
Release characteristics: B, C, D characteristic curve
Frame protection grade: IP40 (after installation)
Anti-environmental force: according to the IEC10081L standard
Total endurance: 180,000 times of on-off
Electrical endurance: no less than 6,000 times of on-off
Mechanical endurance: no less than 12,000 times of on-off

DADA company manufactures miniature electrical switches such MCB Circuit breakers, RCD circuit breakers, ELCB breakers, RCBO, RCB circuit breakers, molded case circuit breaker, DADA started miniature circuit breaker manufacturing from 2004, already offered million various electrical circuit breakers into global markets for different electrical MCB breaker clients.
