Electrical Operating Mechanism

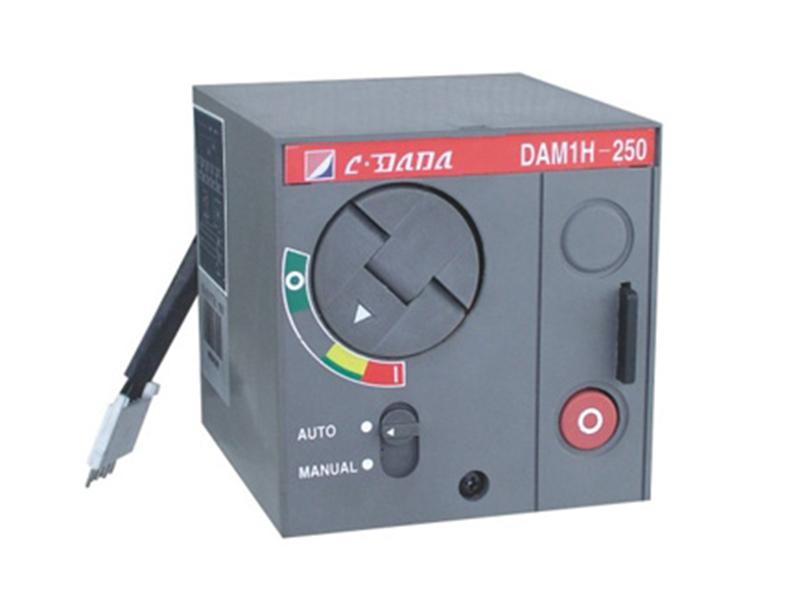

CD1 electrical operating mechanism
CD1 electrical operating mechanism

Introduction of CD1 electrical operating mechanism
1. The motor can be directly closed and opened, there is also a manual opening mode and manual closing mode.
2. Manual emergency opening button
3. User can device opening position lock to prevent circuit breaker closing.
4. Applicable circuit breakers
1) Inm=250A
2) Inm=400A

Please note the specific specifications when ordering.

Action characteristics of CD1 electrical operating mechanism
Electrical accessories for operation Electrical operating mechanism
Voltage range of operational power supply (0.85-1.1)×Us
Rated voltage of power supply Power supply AC50Hz 220V 380V
Power loss Start-up power loss 510VA 510VA
Continuous power loss 360VA 360VA
DC 110VA 220VA
Power loss Start-up power loss 510VA 510VA
Continuous power loss 360VA 360VA
Closing time 0.1S
Opening time 0.3S

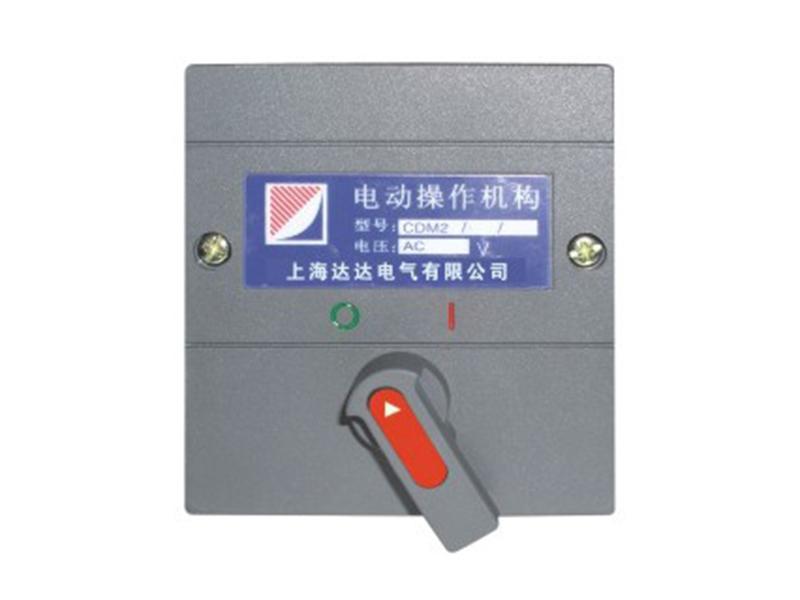

CD2 electrical operating mechanism
CD2 electrical operating mechanism

Introduction of CD2 electrical operating mechanism
1. There are manual modes in the direct closing and opening of the motor.
2. Applicable circuit breakers
①Inm=63A
②Inm= 1OOA
③Inm=160A
④Inm=250A

Please specify the specific specifications when ordering.

Action characteristics of CD2 electrical operating mechanism
Electrical accessories for operation Electrical operating mechanism
Voltage range of operational power supply (0.85-1.1)×Us
Rated voltage of power supply Power supply AC50Hz 220V 380V
Power loss Start-up power loss 220VA 200VA
Continuous power loss 110VA 110VA
DC 110V 220V
Power loss Start-up power loss 200W 200W
Continuous power loss 110W 110W
Closing time 0.1S
Opening time 0.1S

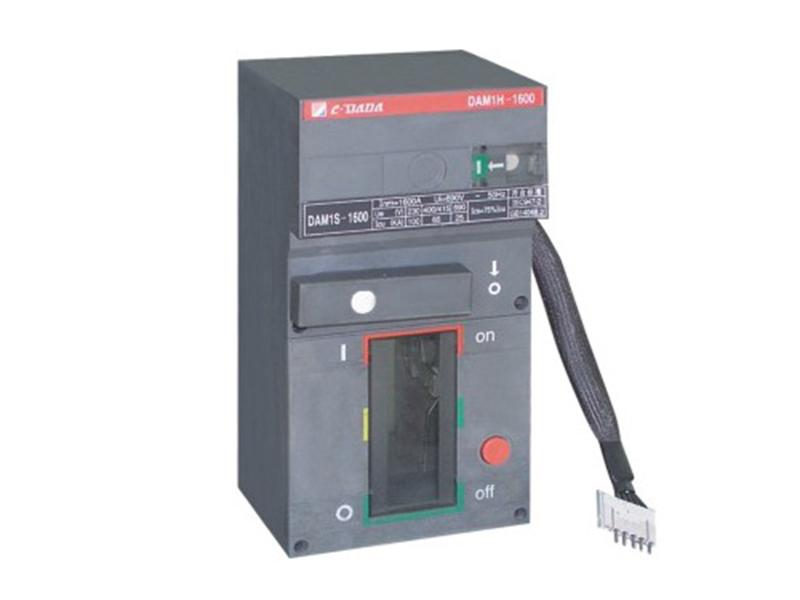

CD3 pre-energy storage electrical operating mechanism
CD3 pre-energy storage electrical operating mechanism

Introduction of CD3 pre-energy storage electrical operating mechanism
1. It can be electrically and manually pre-stored energy.
2. It can be closed by electric power or closed manually.
3. When the user needs to closing the circuit breaker, it is carried out in two steps. The storage energy is finished first, then close the circuit breaker.
4. Electric opening function.
5. Manual emergency opening button.
6. The user can initiate the position lock to prevent the circuit breaker from closing.
7. Applicable circuit breaker
①Inm = 630A
②Inm = 800A
③Inm= 1250A
④Inm= 1600A

Action characteristics of CD3 pre-energy storage electrical operating mechanism
Electrical accessories for operation Electrical operating mechanism
Voltage range of operational power supply (0.85-1.1)×Us
Rated voltage of power supply Power supply AC50Hz 220V 380V
Power Start-up power 660VA 660VA
Continuous power 180VA 180VA
DC 110V 220V
Power Start-up power 600W 600W
Continuous power 180W 180W
Closing time 0.1S
Opening time 0.3S
