DAM1 Molded Case Circuit Breaker

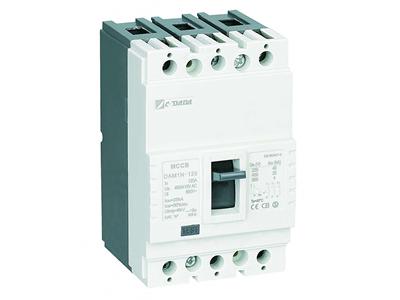

    1. DAM1-125 MCCB Molded Case Circuit Breaker

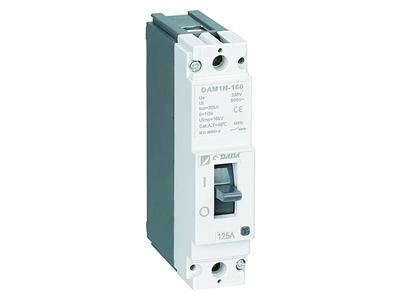

    1. DAM1-160 MCCB Molded Case Circuit Breaker

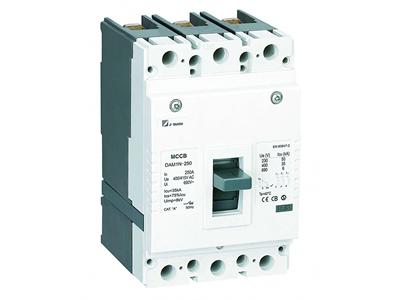

    1. DAM1-250 MCCB Molded Case Circuit Breaker

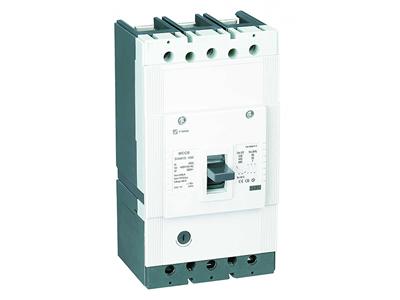

    1. DAM1-400 MCCB Molded Case Circuit Breaker

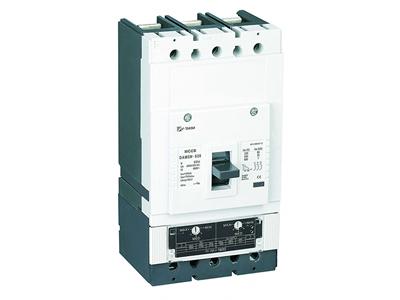

    1. DAM1-630 MCCB Molded Case Circuit Breaker

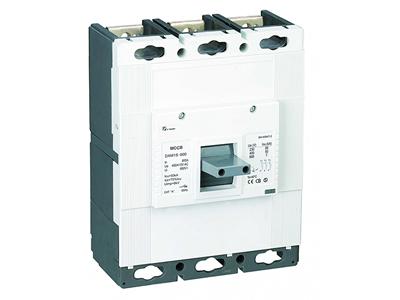

    1. DAM1-800 MCCB Molded Case Circuit Breaker

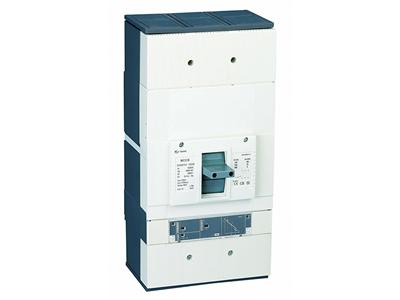

    1. DAM1-1600 MCCB Molded Case Circuit Breaker

Features of DAM1 molded case circuit breaker
The Dada DAM1 series circuit breakers come equipped with advanced microprocessor technology for electronically controlled tripping. They exert intelligent and remote protection functions for electrical systems.

Easy installation
1. The DAM1 series molded case circuit breakers are produced in various installation forms
1) Fixed installation
2) Plug-in installation
3) Extractive installation

2. The circuit of a circuit breaker has various connection modes
1) Wiring in front of the board
2) Vertical connection back of board
3) Horizontal connection back of board
4) Length wiring in front of the board
5) Screw nodding back of board

Technical parameters and installation of DAM1 molded case circuit breaker
Rated current of frame size (A) Fixed type Plug-in type Extractive type
1P/2P 3P 4P 3P 4P 3P 4P
160/1P █ - - - - - -
200/2P █ - - - - - -
200L/2P █ - - - - - -
63/63L - █ █ █ █ - -
125/125L - █ █ █ █ - -
160/160L - █ █ █ █ - -
250/250L - █ █ █ █ █ █
630/630L - █ █ █ █ █ █
800L - █ █ - - █ █
1250 - █ █ - - █ █
1600 - █ █ - - █ █

Working conditions of DAM1 molded case circuit breaker
1. The altitude is not more than 2,000 meters
2. Relative humidity of air at the maximum temperature of 40℃ does not exceed 50%, at lower temperatures allow higher relative humidity, pollution level is 3.

DADA company manufactures miniature electrical switches such MCB Circuit breakers, RCD circuit breakers, ELCB breakers, RCBO, RCB circuit breakers, molded case circuit breaker, DADA started miniature circuit breaker manufacturing from 2004, already offered million various electrical circuit breakers into global markets for different electrical MCB breaker clients.
