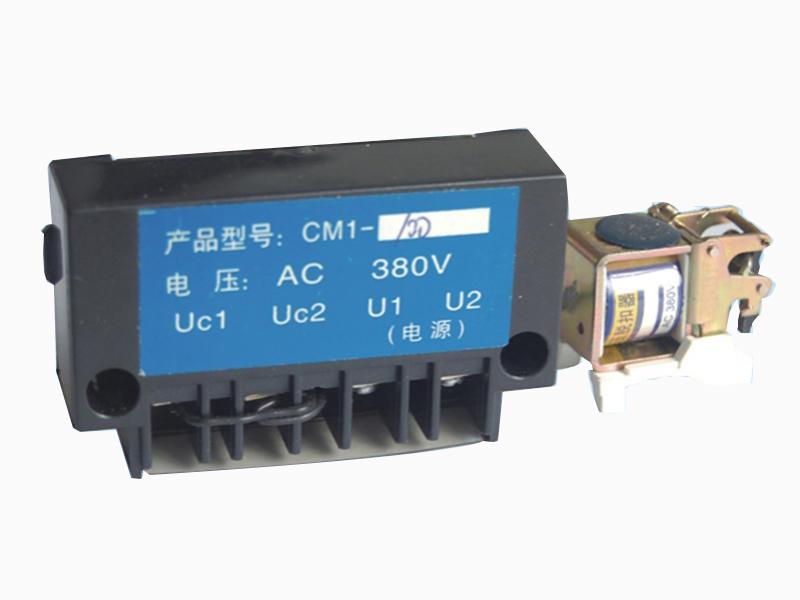

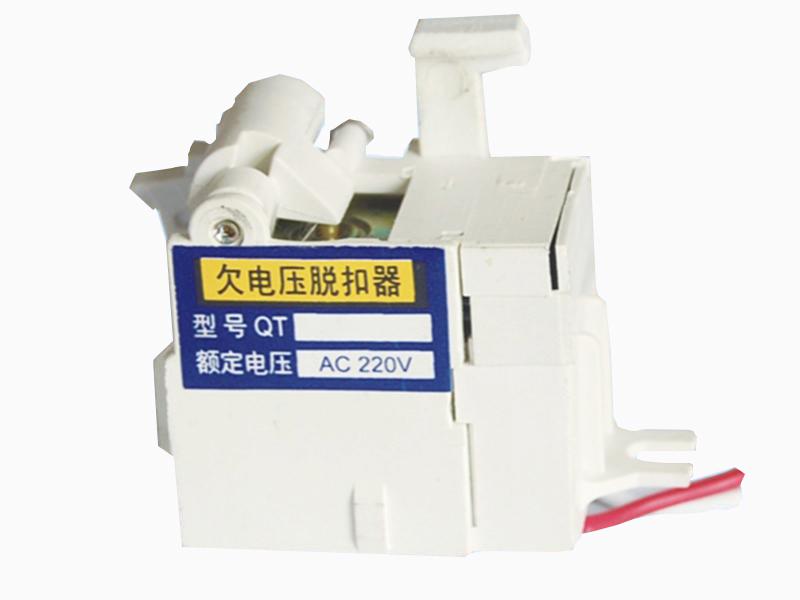

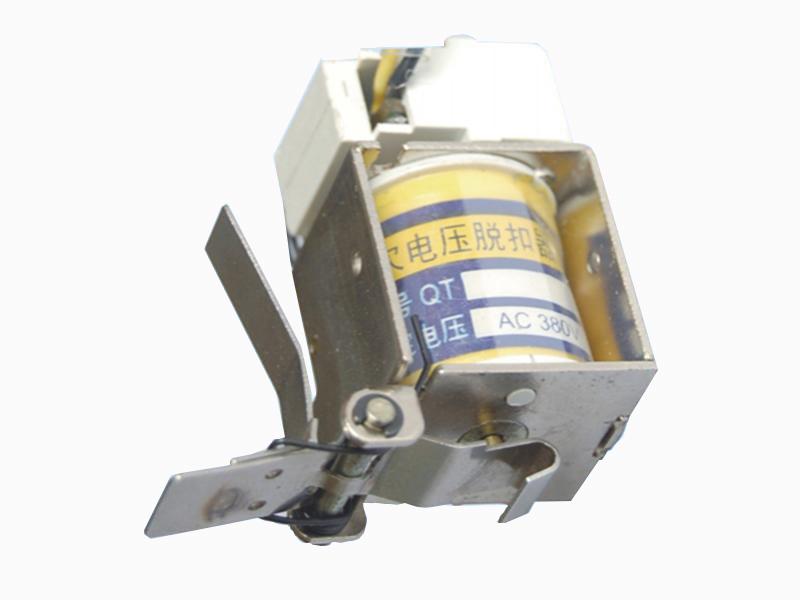

Undervoltage Release Trip Unit

  • Undervoltage Release Trip Unit
  • Undervoltage Release Trip Unit
  • Undervoltage Release Trip Unit

Application
The undervoltage release trip unit is designed as undervoltage protection for circuits and power equipment. The trip operates as part of electrical systems that work continuously.

Action characteristics of undervoltage release trip unit
Rated operating voltage AC380 AC220 DC110 DC220
Action voltage (0.35-0.7)×Ue
Guaranteed closing voltage (0.85-1.1)×Ue
Guarantee no-closing voltage ≤0.35Ue
Power consumption 10VA 4W

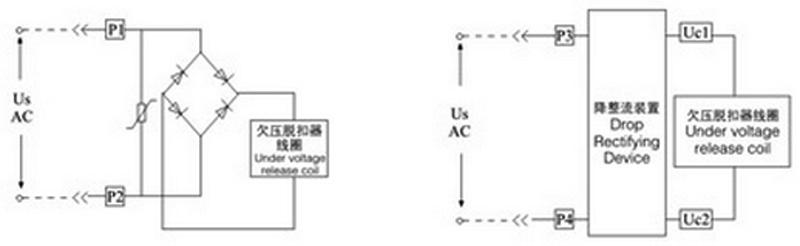

Wiring diagram of undervoltage release trip unit
Wiring diagram of undervoltage release trip unit

Us-Control Power
P1.P2-Teminal number
Uc 1.Uc2-Terminal number
63A-1600A embeded
63A-1600A atlached
