DAB6-100 MCB 6-10kA Miniature Circuit Breaker

Introduction
The DAB6-100 6-10KA miniature circuit breaker was developed by Dada in order to meet GB10963 and IEC60898 standards. The circuit breakers feature outstanding characteristics such as stable usage, precision protection,short opening time, high breaking capacity index, and the overall design is notably small.

Widely used for overload protection for contactors, relays and other pieces of electrical equipment.

Main functions: short circuit protection, overload protection and isolation.

Model

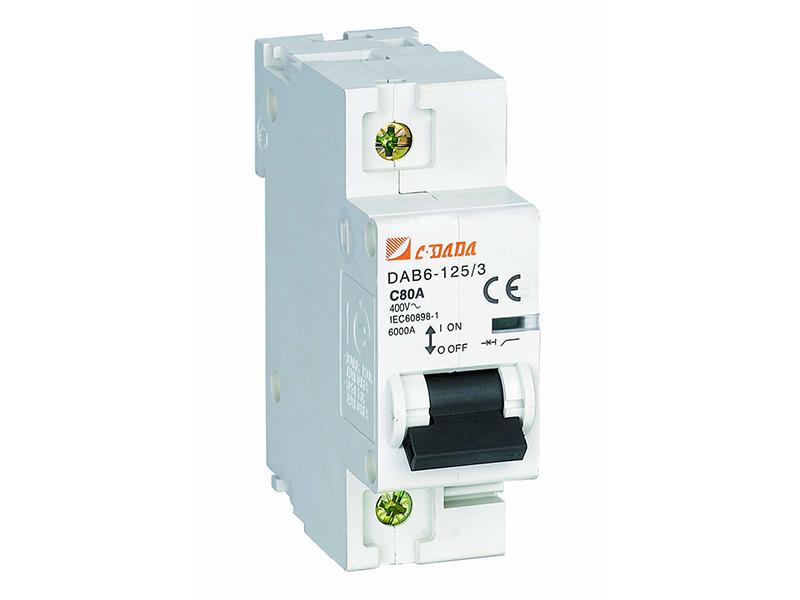

DAB6-100 1 miniature circuit breaker
DAB6-100 1 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 230/400V 63,80,100,125A 500V 4KV DAB6-100 DAB6-100 Thermo-magnetic 27mm*80mm*73mm
B/C/D 10KA(16-63A), 6KA(80-100A)
Inquiry Form

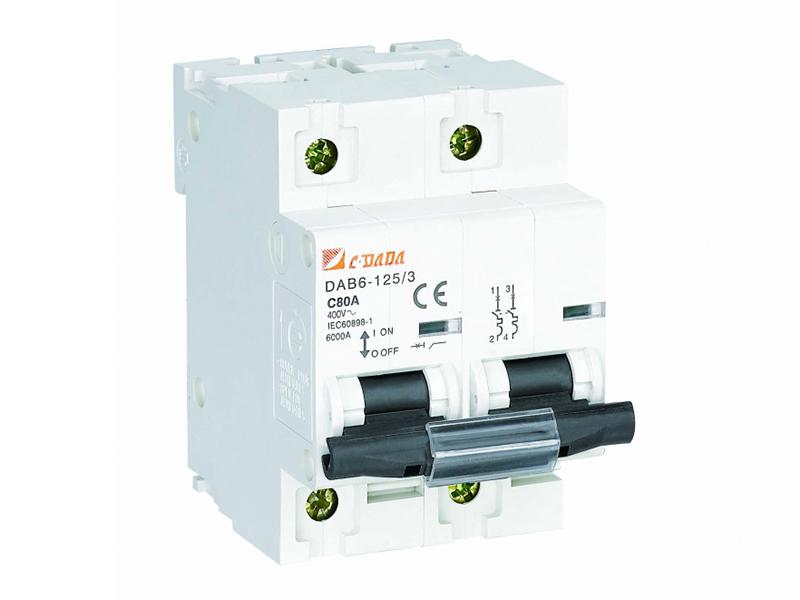

DAB6-100 2 miniature circuit breaker
DAB6-100 2 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 400V 63,80,100,125A 500V 4KV DAB6-100 DAB6-100 Thermo-magnetic 54mm*80mm*73mm
B/C/D 10KA(16-63A), 6KA(80-100A)
Inquiry Form

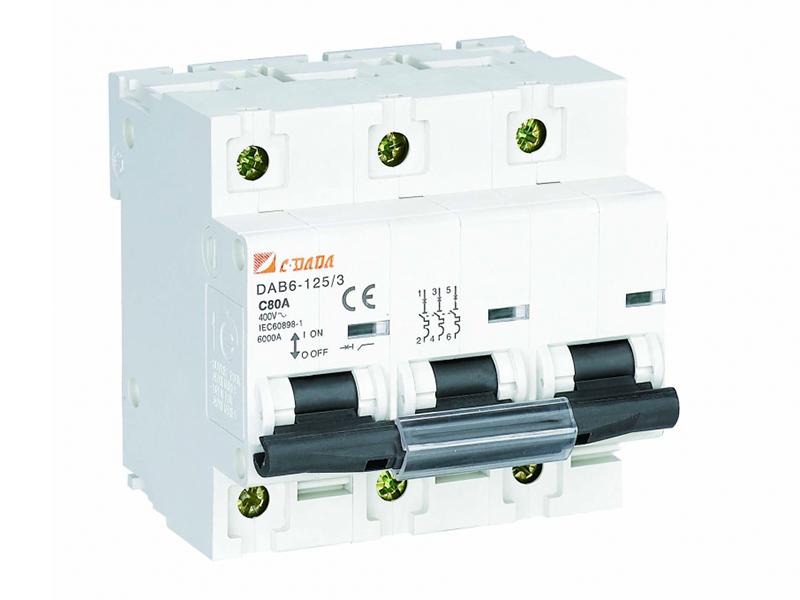

DAB6-100 3 miniature circuit breaker
DAB6-100 3 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 400V 63,80,100,125A 500V 4KV DAB6-100 DAB6-100 Thermo-magnetic 81mm*80mm*73mm
B/C/D 10KA(16-63A), 6KA(80-100A)
Inquiry Form

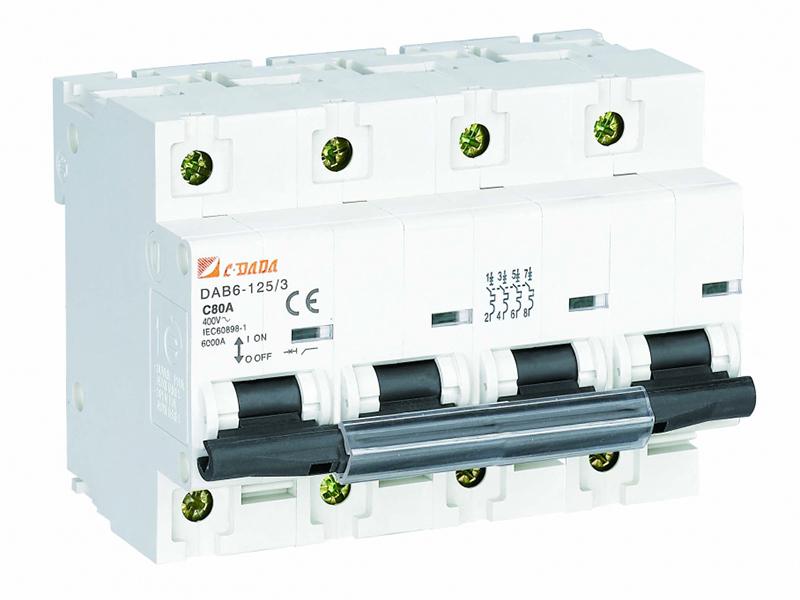

DAB6-100 4 miniature circuit breaker
DAB6-100 4 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 400V 63,80,100,125A 500V 4KV DAB6-100 DAB6-100 Thermo-magnetic 108mm*80mm*73mm
B/C/D 10KA(16-63A), 6KA(80-100A)
Inquiry Form

Technical parameter of DAB6-100miniature circuit breaker
Standard of conformity: IEC60898
Rated voltage: 230/400V, 50HZ
Rated breaking capacity: 6/10KA
Rated current: 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A
Protection grade: IP20
Flame retardant grade: grade2
Endurance: no less than 10,000 times of on-off

Mechanical parameters of DAB6-100miniature circuit breaker
Electric wire: 1~35mm2
Terminal type: Dual-purpose terminal can be connected to the bus bar and conductor
Operating temperature: -5~+40℃
Altitude: ≤2000
Relative humidity: +20℃,≤90%; +40℃,≤50%
Class of pollution: 2
Installation method: Using 35mm guide rail according to IEC standard
Installation environment: Avoid obvious shock and vibration
Installation grade: grade II
Guide rail: DIN35guide rail

Installable accessories
Auxiliary contact, alarm contact, shunt trip, undervoltage trip, auxiliary contact alarm

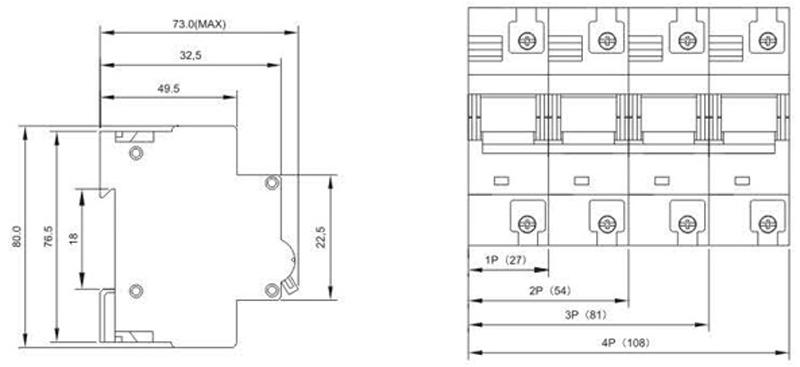

Installation size
Installation size
