DAM3-160 MCCB Molded Case Circuit Breaker

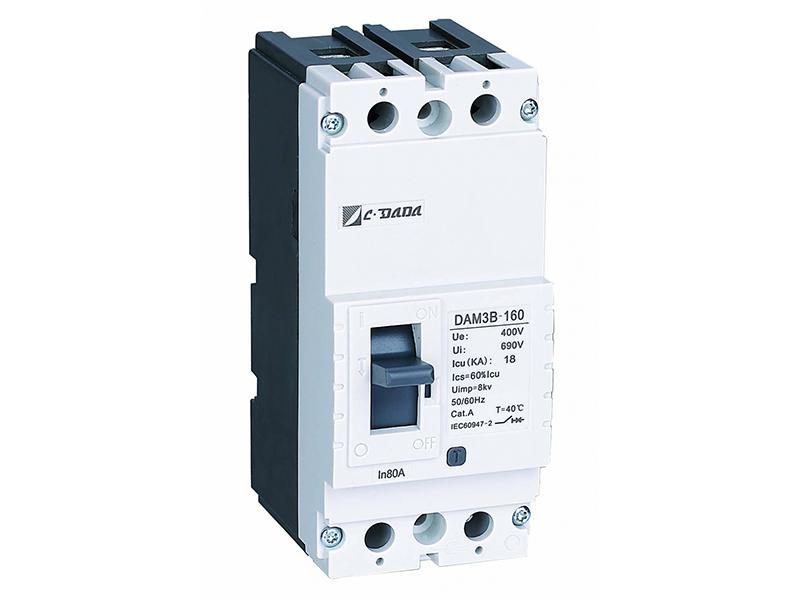

  • DAM3-160 2P molded case circuit breaker
    DAM3-160 2P molded case circuit breaker

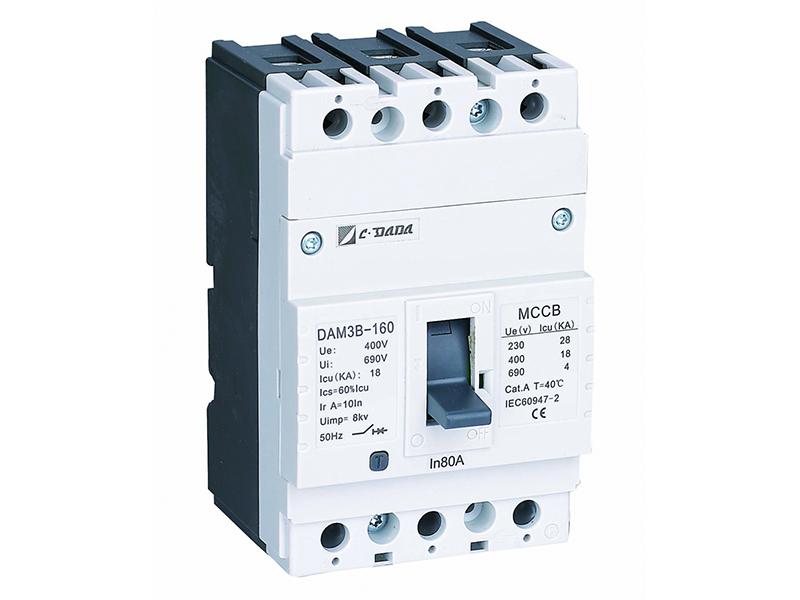

  • DAM3-160 3P molded case circuit breaker
    DAM3-160 3P molded case circuit breaker

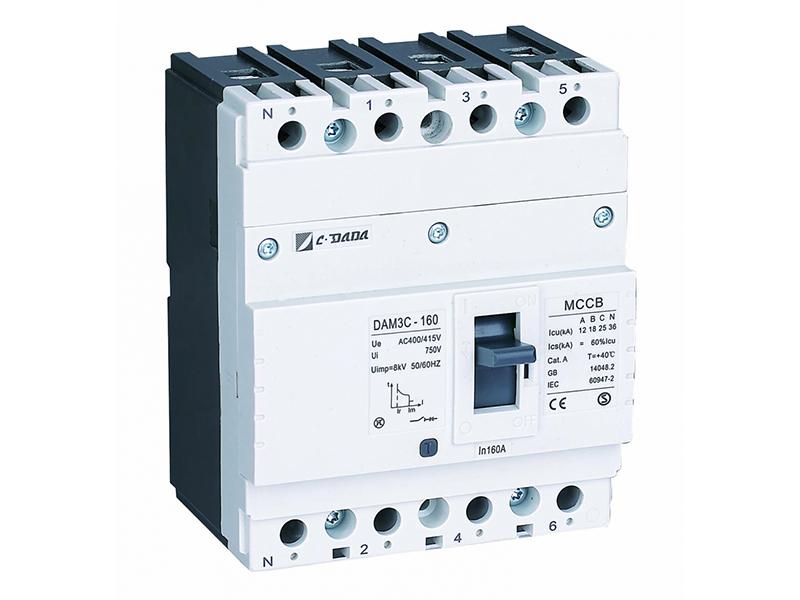

  • DAM3-160 4P molded case circuit breaker
    DAM3-160 4P molded case circuit breaker

Overview
The rated insulation voltage of the DAM3-160 molded case circuit breaker is 160V. These circuit breakers are suitable for power distribution circuits with an alternating current of 50-60Hz, a rated operating voltage up to 750V, and rated operating current from 12.5A to 160A. The circuit breaker is important in distributing power and protecting the circuit and power equipment from overloading, short circuits, and undervoltage failure damage. They can also be used in electric motors for infrequent starting and overload protection as well as protection against short circuiting and undervoltage conditions.

Compared with the DAM1 series, the DAM3 series have the characteristics of smaller volume, higher breaking capacity, and more energy saving.

Electrical parameters of DAM3-160 molded case circuit breaker
Rated current of frame size Inm [A]
160
Rated current [A] 12.5-160
Number of poles 1 / 2/ 3 / 4
Rated operating voltage (AC)50-60HZ [V] 400/690
DC [V] 250/1000
Rated impulse withstand voltage Uimp [KV] 8
Rated insulation voltage Ui [V] 750
Test voltage at industrial frequency for 1 min [V] 3000
Rated ultimate short-circuit breaking capacity Icu [KA] A B C N
(AC)50-60HZ 220/230V [KA] 18 28 36 50
(AC)50-60HZ 400/415V [KA] 12 18 25 36
(AC)50-60HZ 690V [KA] 4 6 8 12
(DC)250V-2 Poles in series 12 18 22 30
(DC)500V-2 Poles in series 6 8 10 12
(DC)750V-4 Poles in series 10 15 18 22
(DC)1000V-4 Poles in series 8 12 15 18
Rated service short-circuit breaking capacity, Ics [KA]



(AC)50-60HZ 220/230V [% Icu] 60% 60% 60% 50%
(AC)50-60HZ 400/415V [% Icu] 60% 60% 60% 50%
(AC)50-60HZ 690V [% Icu] 60% 60% 60% 50%
category of utilization (EN 60947-2) A
Isolation condition Bitmap
Reference standard IEC/EN 60947-2/GB 14048.2
Interchangeability -
Versions Fixed Bitmap
Plug-in Bitmap
Draw-out -
Physical parameters of DAM3-160 molded case circuit breaker
Endurance Total cycles 10000
Electrical endurance 1500
Mechanical endurance 8500
Basic dimensjons-fixed version 3/4 Poies W[mm] 27(1P) / 54(2P) / 76 / 101
3/4 Poies H[mm] 59 62.5
H1[mm] 78.5 82
3/4 Poies L[mm] 120

Introduction
The DAM3-160 molded case circuit breaker automatically cuts off the current when the current exceeds the release setting. The molded case refers to the plastic insulator used as the frame of the device to insulate the conductor and the metal grounding component.

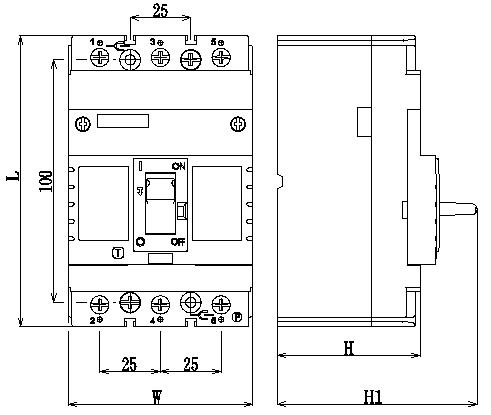

Size of DAM3-160 molded case circuit breaker
DAM3-160 MCCB Molded Case Circuit Breaker
