DAB7-125 15kA MCB Switch Miniature Circuit Breaker

Main features of DAB7-125 15kA miniature circuit breaker
1. It meets the latest IEC60947-2: 2006 standards
2. The structure is compact and has provides clear indication of close circuit or open circuit.
3. High breaking capacity and limiting characteristics.
4. Both ends of the dual-purpose terminal are suitable for bus bar and single conductors.
5. It has professional accessories.

Model

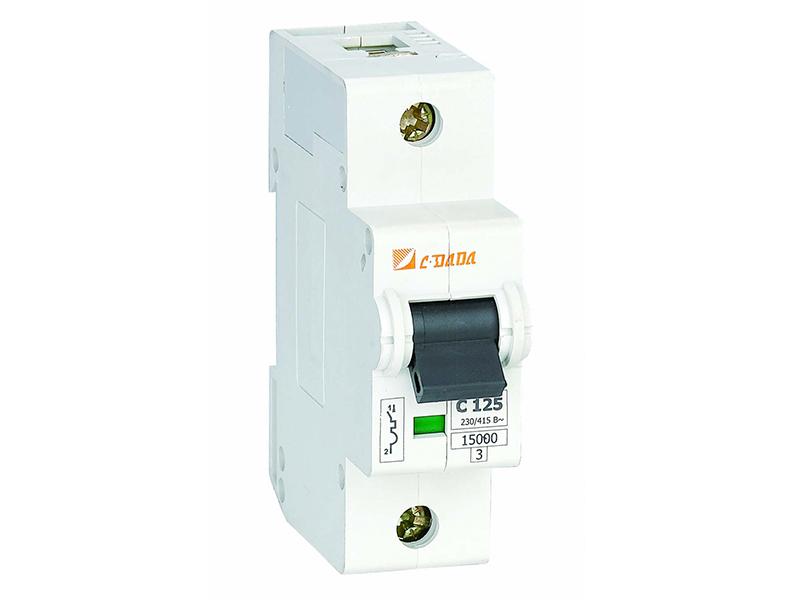

DAB7-125 1 miniature circuit breaker
DAB7-125 1 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 230/400V 6,10,16,20,25,32,40,50,63,80,100,125A 500V 4KV DAB7-63N DAB7-63H DAB7-63N DAB7-63H Thermo-magnetic 27mm*90mm*75.5mm
B/C/D B/C/D 15 25(100-125A 15KA)
Inquiry Form

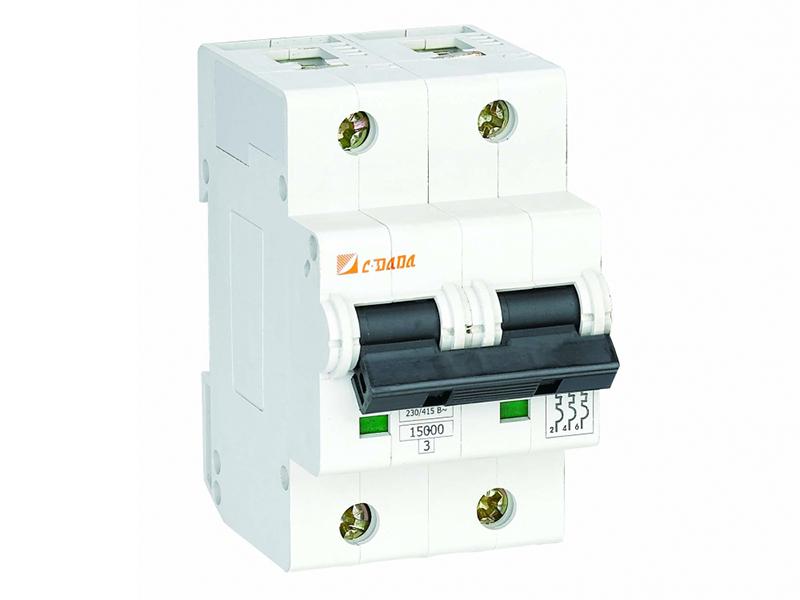

DAB7-125 2 miniature circuit breaker
DAB7-125 2 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 400V 6,10,16,20,25,32,40,50,63,80,100,125A 500V 4KV DAB7-63N DAB7-63H DAB7-63N DAB7-63H Thermo-magnetic 54mm*90mm*75.5mm
B/C/D B/C/D 15 25(100-125A 15KA)
Inquiry Form

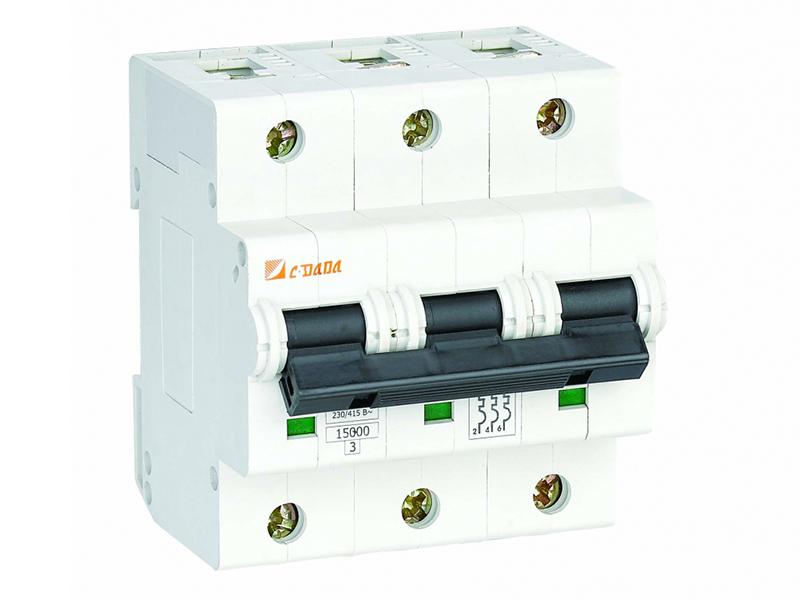

DAB7-125 3 miniature circuit breaker
DAB7-125 3 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 400V 6,10,16,20,25,32,40,50,63,80,100,125A 500V 4KV DAB7-63N DAB7-63H DAB7-63N DAB7-63H Thermo-magnetic 81mm*90mm*75.5mm
B/C/D B/C/D 15 25(100-125A 15KA)
Inquiry Form

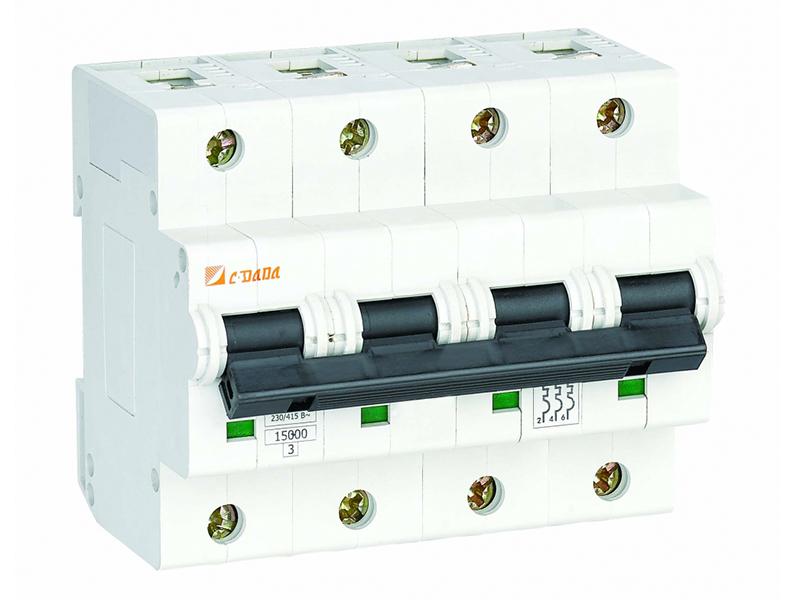

DAB7-125 4 miniature circuit breaker
DAB7-125 4 miniature circuit breaker
Rated frequency Rated operating voltage Rated current Rated insulation voltage Impulse withstand voltage Instantaneous trip type Rated breaking capacity Release type W*H*L
50-60Hz 400V 6,10,16,20,25,32,40,50,63,80,100,125A 500V 4KV DAB7-63N DAB7-63H DAB7-63N DAB7-63H Thermo-magnetic 108mm*90mm*75.5mm
B/C/D B/C/D 15 25(100-125A 15KA)
Inquiry Form

Technical parameter of DAB7-125 15kA miniature circuit breaker
Standard of conformity: IEC60947-2, IEC/EN60898
Rated voltage: 230/400V, 50/60HZ
Rated breaking capacity: N15KA H25KA
Protection grade: IP20
Rated current: 6-125A
Flame retardant grade: grade2
Endurance: no less than 1,000 times of opening and closing

Mechanical parameters of DAB7-125 15kA miniature circuit breaker
Electric wire: 1~35mm2
Connection mode: There are two kinds of connection, direct connection to the connecting plate, or connected by copper wire
Suitable size for terminal: The thickness of connecting plate is 0.8-2mm, the sectional area of copper conductor is 1-25mm2
Operating temperature: -5~+40℃
Altitude: ≤2000
Relative humidity: +20℃,≤90%; +40℃,≤50%
Class of pollution: 2
Installation method: Using 35mm guide rail according to IEC standard
Installation environment: Avoid obvious shock and vibration
Installation grade: grade II
Guide rail: DIN35guide rail

Release characteristics
Type B circuit breaker - for lighting distribution systems
Type C circuit breaker - for lighting distribution, socket circuit, or partial distribution systems
Type D circuit breaker –for power or other strong inductive load circuits.
